The fiber laser is used as the base film output, and the focused spot diameter is 10 microns. The high speed is controlled by the computer. Scanning galvanometer deflection changes the optical path of the laser beam to realize automatic marking. Laser coding is not forceful and non-contact, and has almost no impact on the quality of the product. After coding, the texture of the font is stronger. This printer can be used in industrial bearings, gears, various auto parts, hardware tools, aerospace devices, integrated circuit chips, computer accessories, clocks, electronic and communication products, home appliances, wires and cables, food packaging, jewelry, and tobacco. The materials include gold, silver, copper, aluminum, stainless steel, hard alloy, chrome-plated, titanium-plated and other metals, ceramics, PVC, plastics, epoxyresins, leather and other non-metallic materials

Highlighted features:

1. Fiber laser output laser, high electro-optic conversion rate, small size, no external water cooling equipment, good beam quality. Fiber laser is the most advanced laser in the world, with long service life and low maintenance cost.
2. Touch flying marking system, is based on the embedded platform of laser control system, easy to operate, high stability, fast running speed, the current 3.0 version of the system, it is one of the fastest flying marking system in the world.

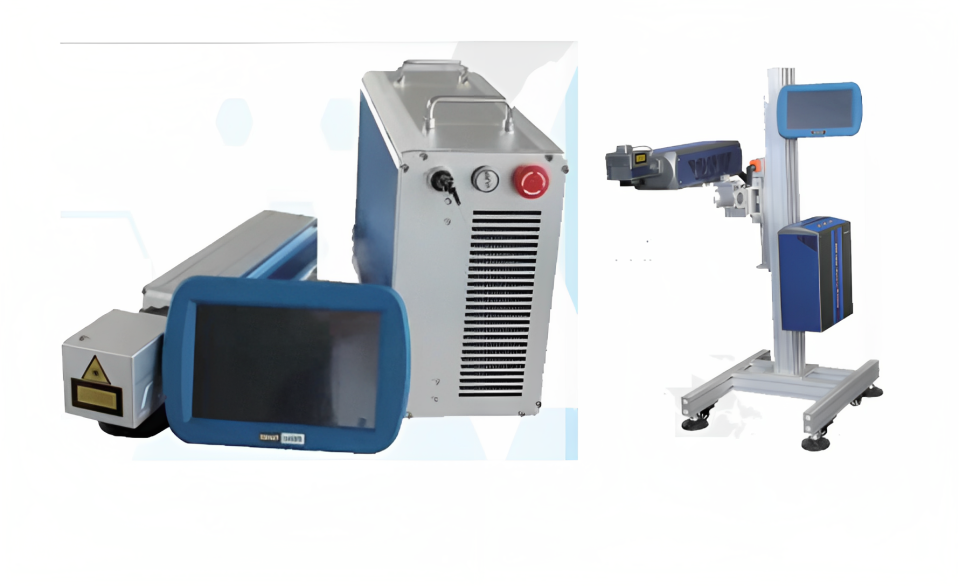

3. Fiber jet coding machine MQ-T300 adopts high-quality accessories, professional production, products with its superior performance, reliable quality to win the trust of the majority of users.

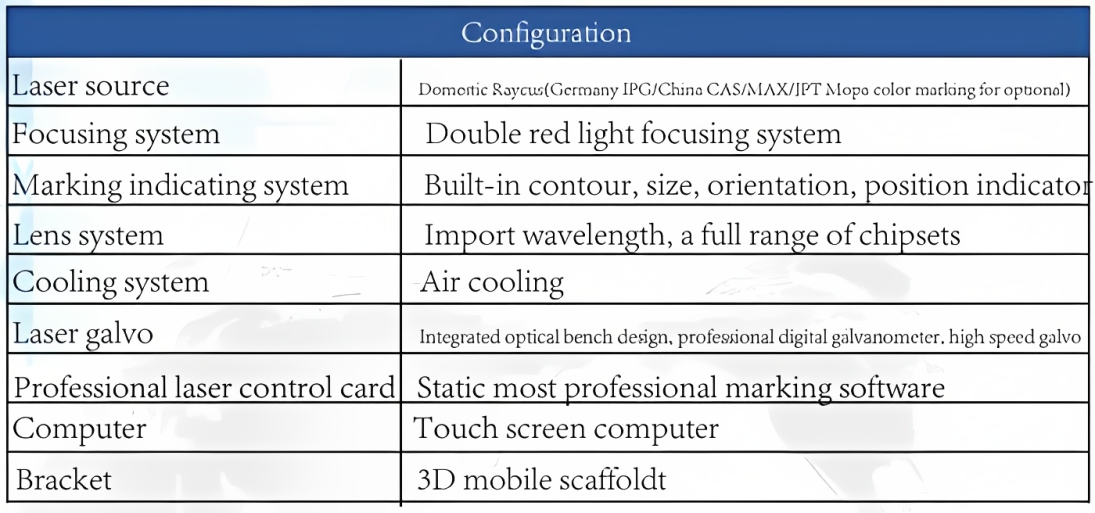

Configuration:

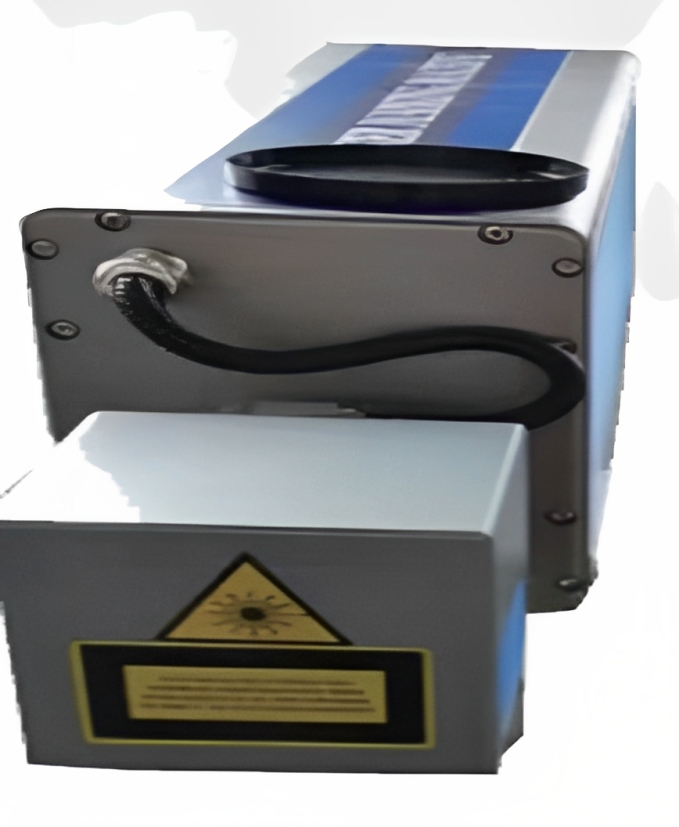

Fiber laser Source:

1. Fiber laser generator uses ytterbium-doped double-clad fiber as the laser medium.
2. The power and energy conversion efficiency are high, also the output pulse energy and power have reached a higher level.It is widely used in marking, cutting, drilling, chemistry,

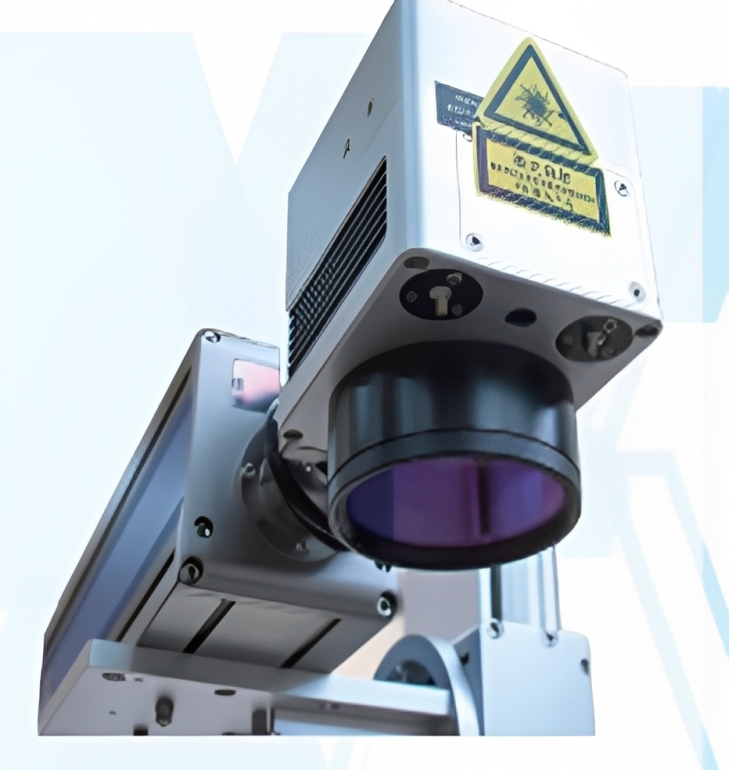

Double red light speed digital galvanometer:

1. New Germany high-speed scanning galvanometer, reliable quality, beautiful appearance, built-in double red light focusing marking instructions.
2. Features include compact and flexible, adjustment-free, maintenance-free, high stability advantages.

Industrial control computer:

1. Machine is with Cable-free assembly design in nice shape, features include low power consumption, stable performance, powerful performance.

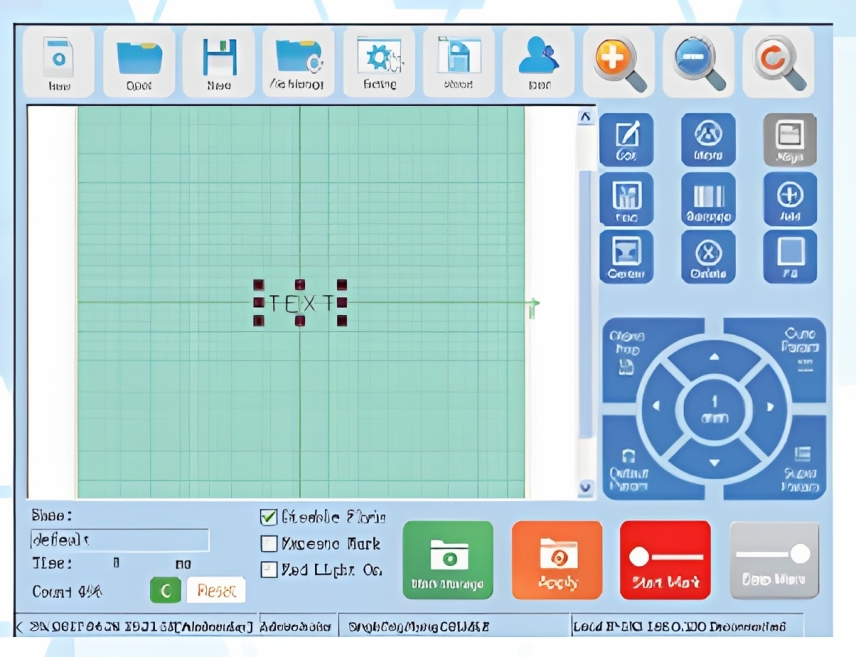

Touch flight marking system:

1. This system is currently the most advanced marking software, it develops base on flight marking, windows operation and interface is very friendly, it can be very easy to edit any text pattern. The user could finish learning it for only one day if has basic computer knowledge.

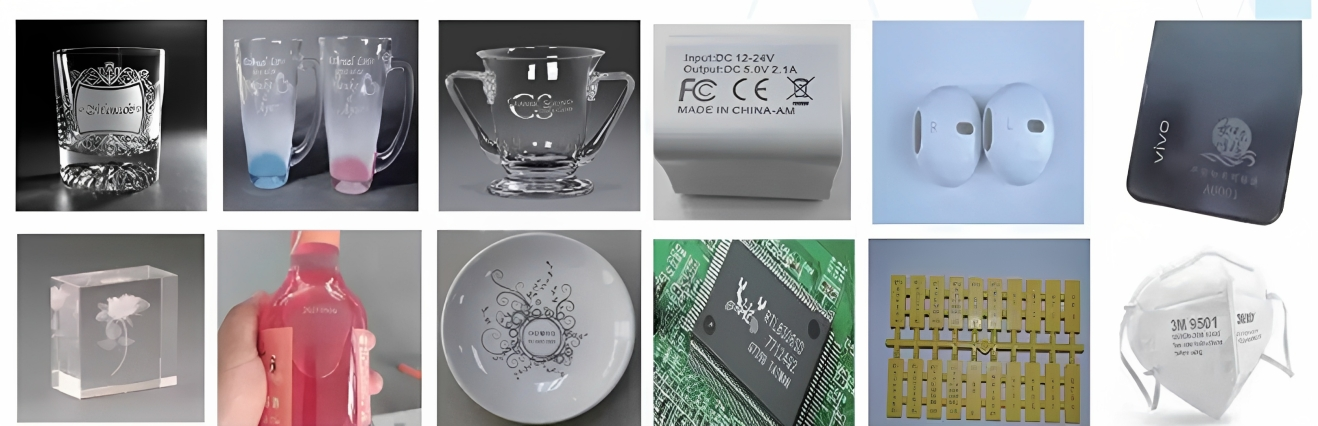

Samples done by laser marking machine:
